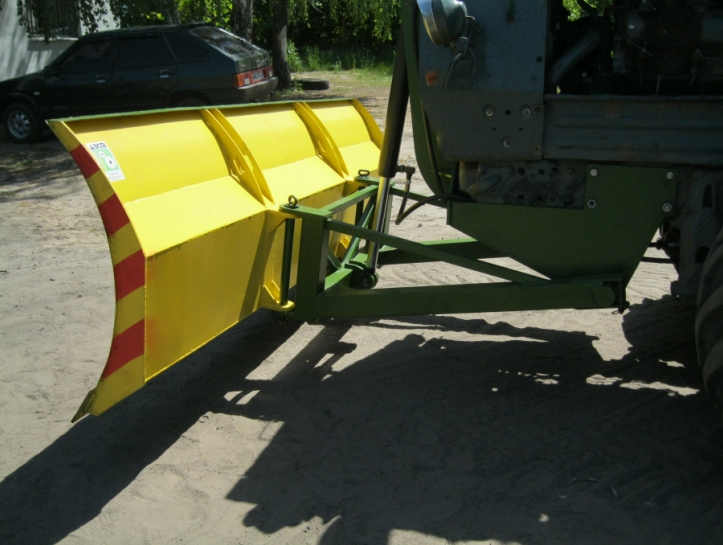

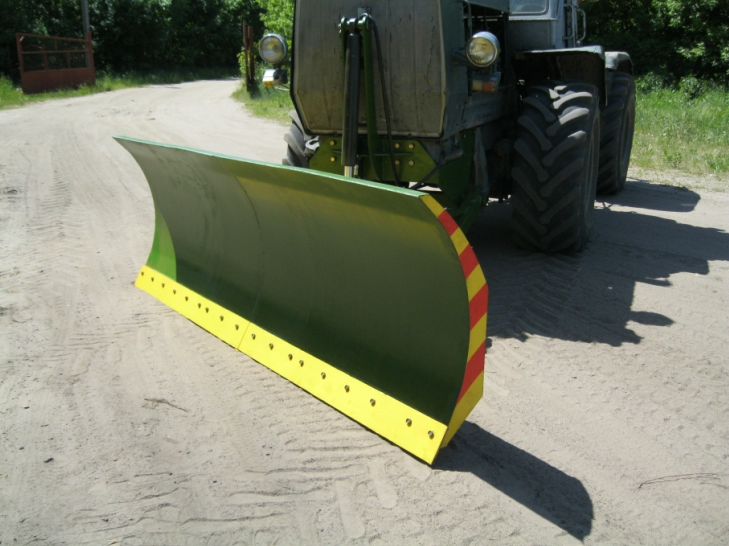

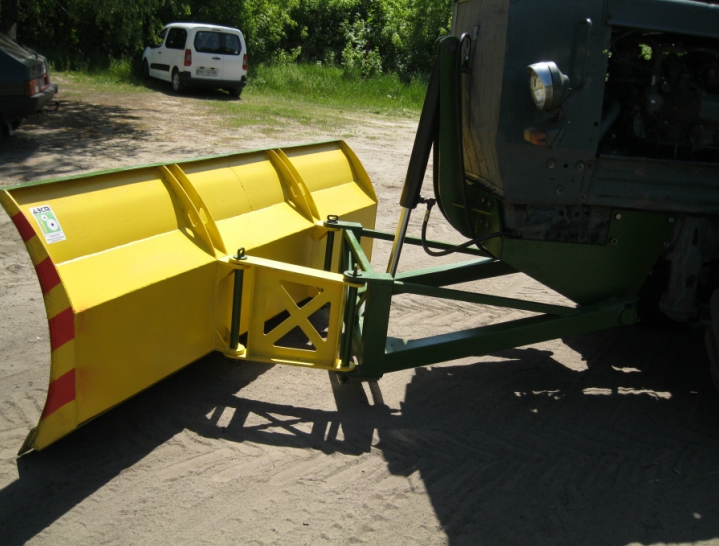

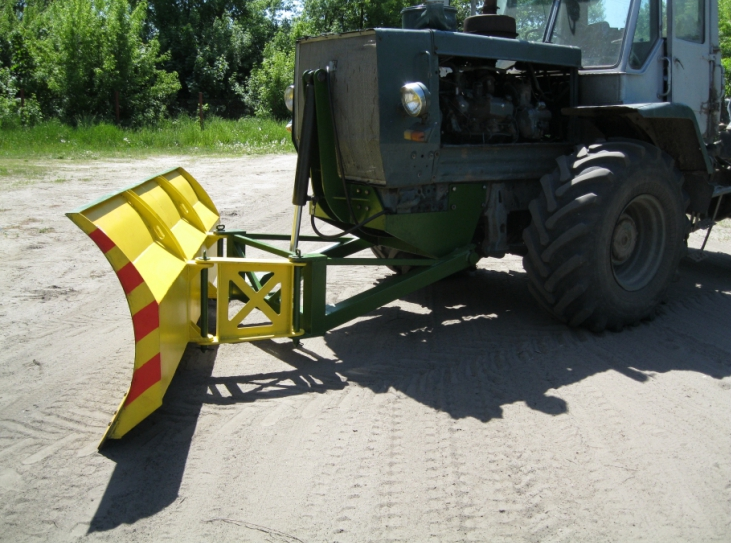

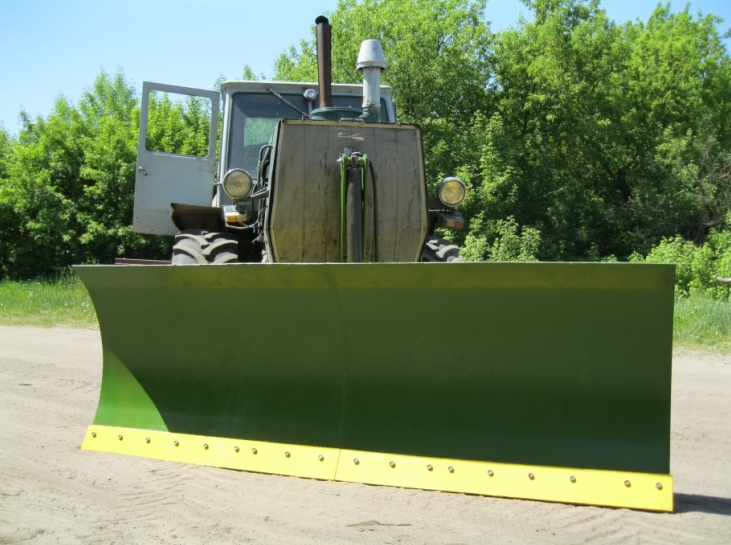

Reinforced Snow Plow SVP-3 (SVP-3G) Tractor

Price: from 1 976 USD

For tractors 110 — 150 hp, which do not have a front hydraulic hitch

The purpose of the SVP-3 (SVP-3G) tractor dump truck is to move soil, sand, crushed stone, silage, sawdust, snow, backfill trenches, pits or for other types of work. The design allows you to perform heavy construction work, and will also ensure the speedy clearing of roads from snow.

Snow removal shovel Reinforced SVP-3 (SVP-3G) Tractor has a rigid reinforced box structure, which has been tested on T-150 tractors since 2016.

TECHNICAL CHARACTERISTICS

Width / Height — 3000 / 1020
The weight of the SVP-3 tractor is 680 kg
The weight of the SVP-3G tractor is 730 kg

The width of the area cleaned in one pass is more than 2.4 m
The maximum possible thickness of snow that can be removed in one pass is 0.7 m
Lifting and lowering occurs with the help of a hydraulic cylinder
Dump height above the support plane — 0.7 m
Lowering the dump below the support plane — 0.3 m

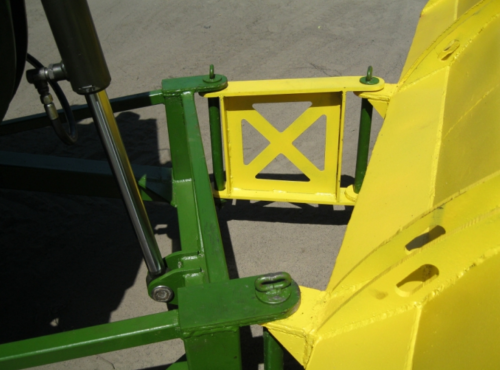

In the SVP-3 configuration, turning to the right or left at an angle of 30 degrees is done mechanically using an insert.
In the SVP-3G configuration, turning to the right or left at an angle of 30 degrees occurs with the help of two hydraulic cylinders.

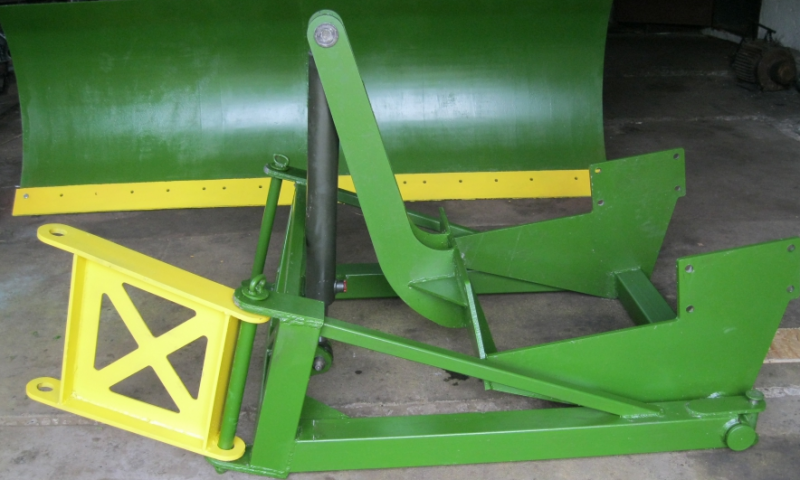

ASSEMBLIES OF THE SVP-3 (SVP-3G) tractor dump truck:

hydraulic cylinder HC 80.40.630.930.40;
in the SVP-3G configuration, two additional cylinders HC 80.40.250.550;
high pressure hose;
elements for attachment to the tractor;
a metal knife with a thickness of 16 mm and/or a knife made of reinforced rubber with a thickness of 40 mm.

OUR ADVANTAGES:
*rigid box structure allows you to move soil, sand, crushed stone, silage, sawdust, snow, fill trenches, pits.
*the shape of the shovel and the angle of attack ensure that the snow is «turned over» and does not lift it higher than the shovel.
*the clamping bar of the rubber knife simultaneously serves as a metal knife.
*mechanical or hydraulic rotation by 30 degrees to the left or right.
*adaptation for any tractor or loader

WARRANTY – 24 months for mechanical components, 12 months for hydraulic components

The dump truck SVP-3 (SVP-3G) due to its rigid design will ensure long years of service and comfortable operation of your equipment.
