Log grapple

«

Prev

1

/

1

Next

»

«

Prev

1

/

1

Next

»

Price: 1600 usd.

Specifications

• Length/Width/Height — 1100/950/650 mm

• Weight — 280 kg

• Maximum opening — 113 cm

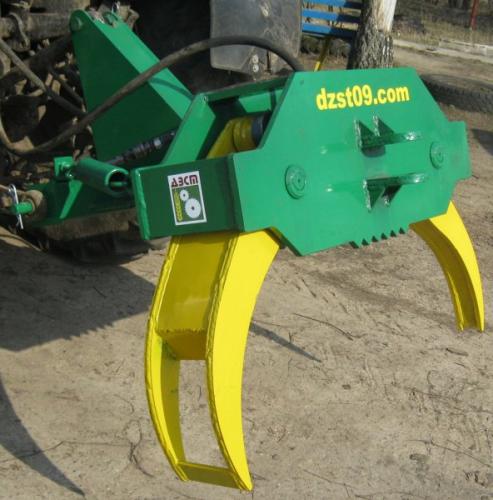

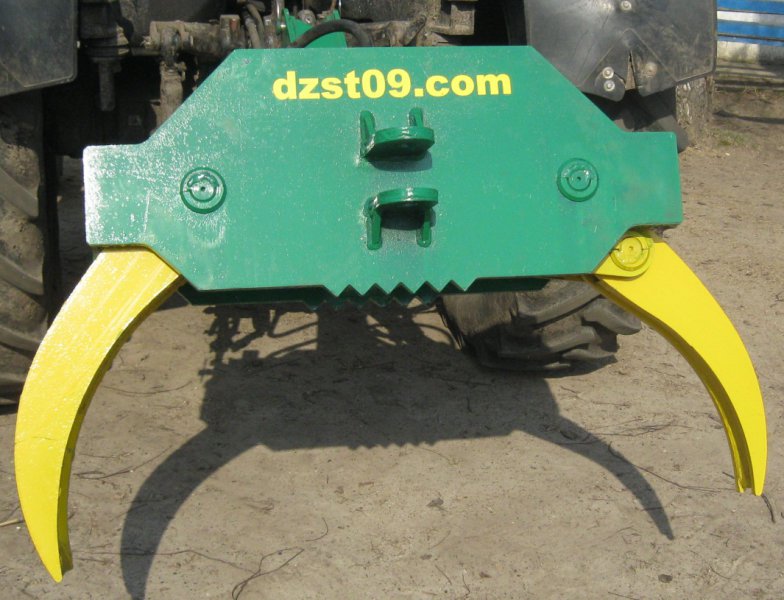

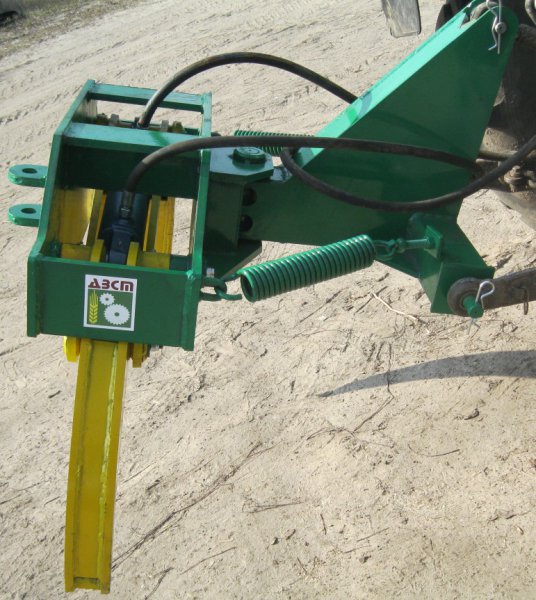

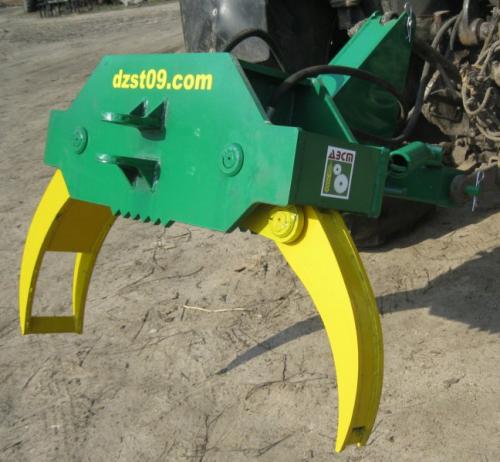

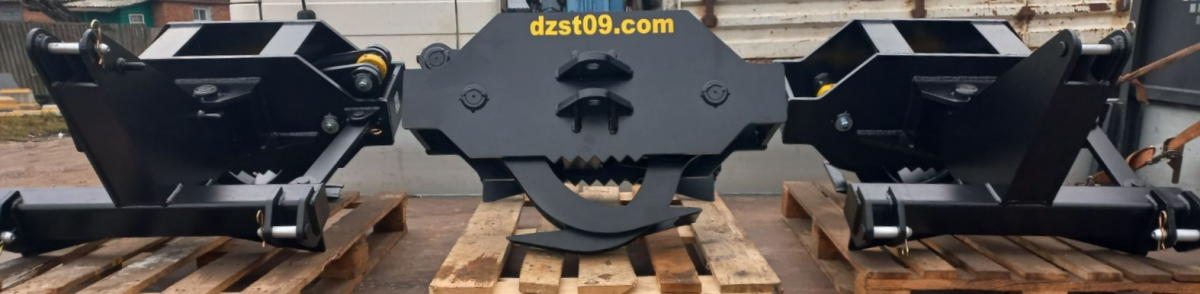

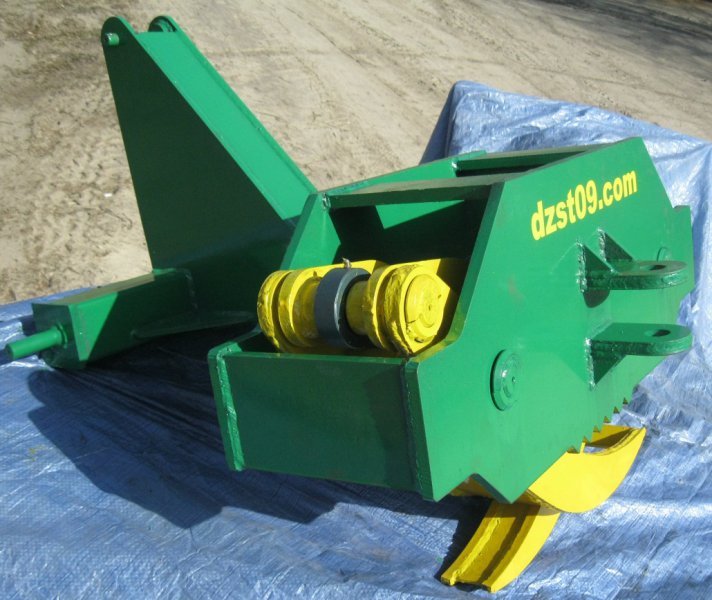

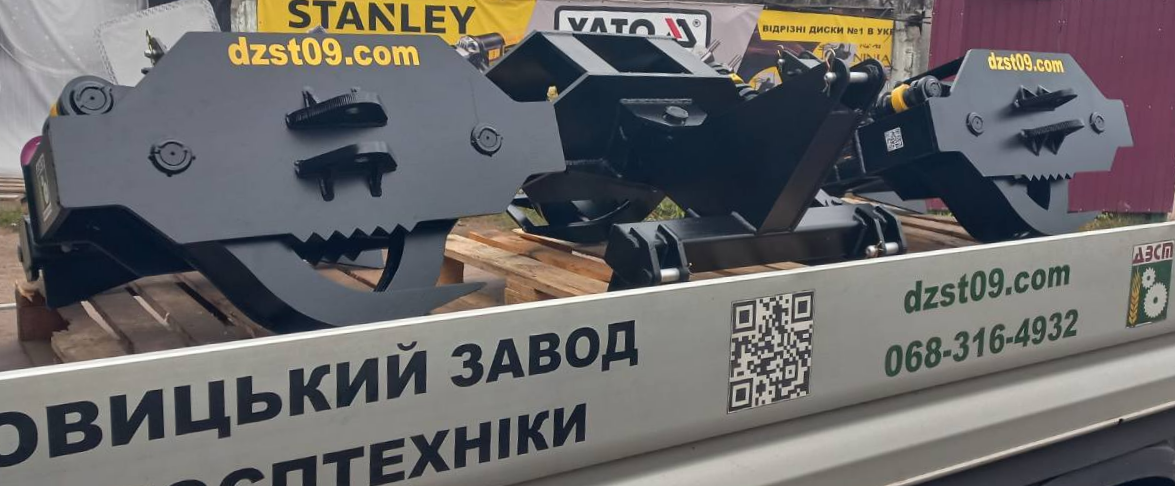

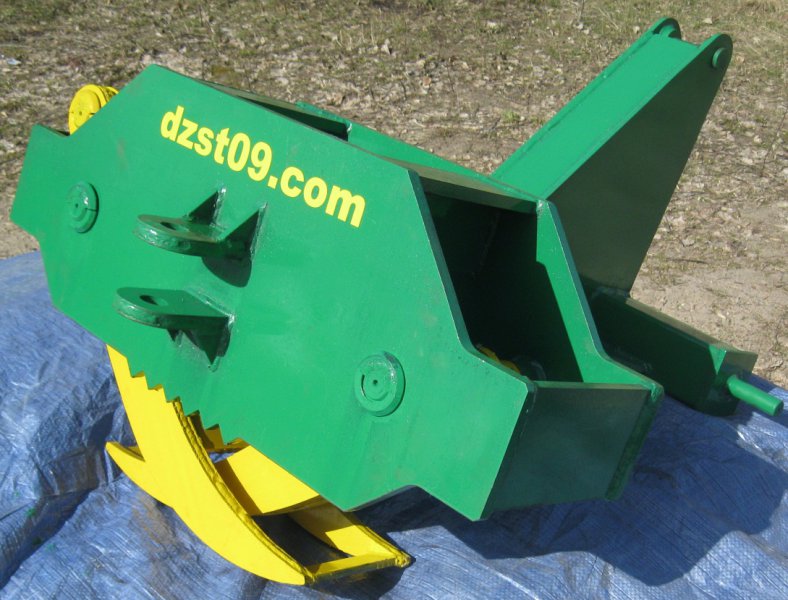

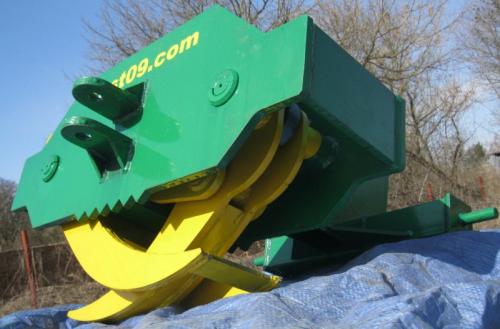

The log grapple is a mechanical device that is mounted on the tractor rear linkage. It’s used in logging, sawmills, and heavy loading and unloading operations.

Presented on the company’s LLC «Dubovitsky Agricultural Machinery Plant» website grab for logs is well suited for grabbing, lifting and lowering large diameters heavy objects.

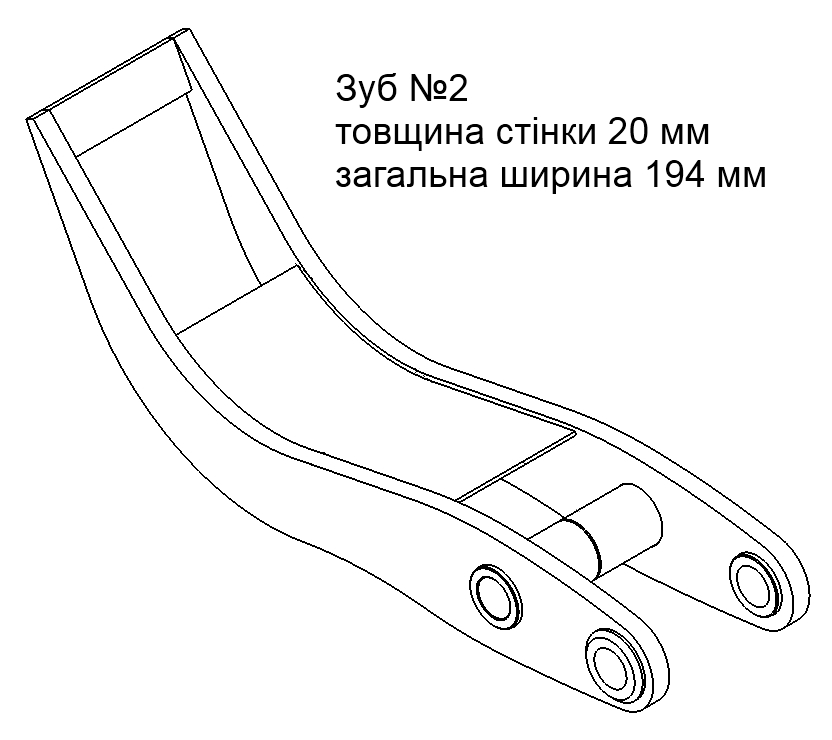

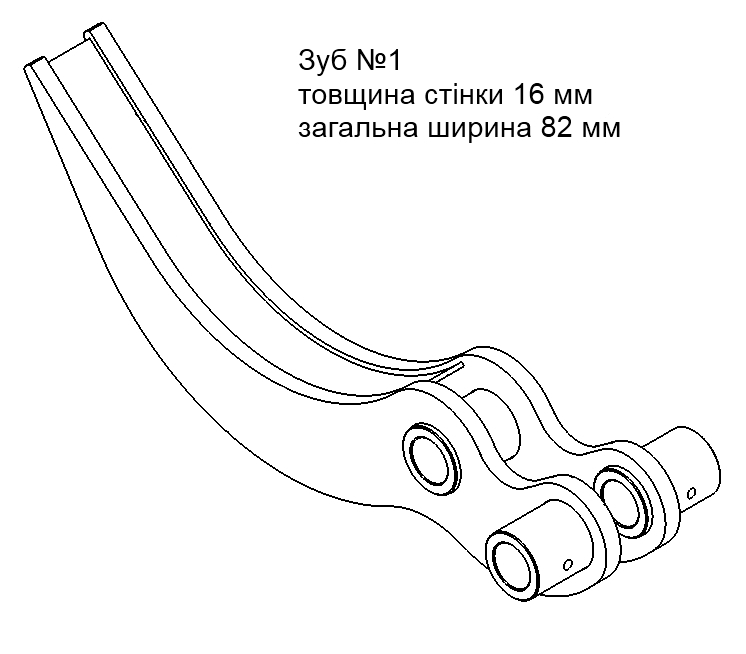

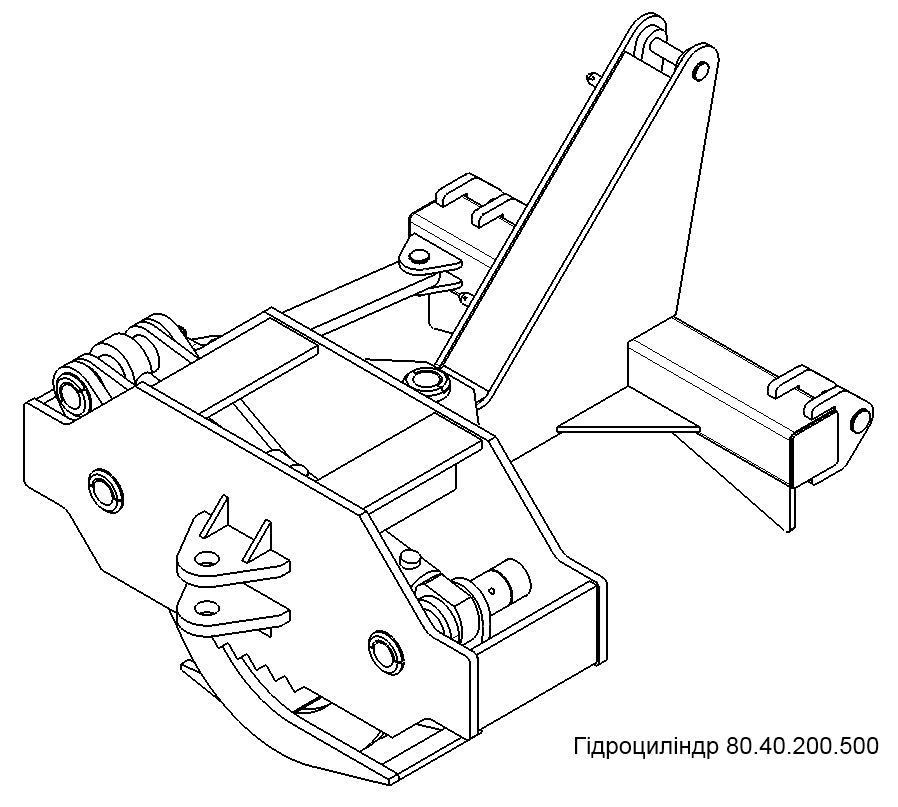

The hydraulic gripper of our design is equipped with a cylinder GTs80.40.200.500. The cylinder ears have spherical joints with a diameter of 40 mm. All fingers and sleeves are made of steel 45, the fingers are heat-treated and ground. All pins are 40 mm in diameter. All bushings are equipped with grease nipples. Log grapple is made of high-quality metal, which is resistant to shock and temperature changes. The metal thickness of the main structure is 16 mm, the wall of the large tine is 20 mm.

Delivery by carrier.

12-month warranty.

The log grapple will be especially useful for work in the woods. We can guarantee you the quality and long life of this log grapple.

You may also be interested in log grapple LES on the tractor front linkage –on a front loader with EURO frame.
