Tree puller CROCODILE

Price: 1 780 USD

Dubovitsky Agricultural Machinery Plant offers a set of mounted equipment for deforestation of the fields: hydraulic puller CROCODILE (pulling up trees with diameter from 3 to 25 cm), puller RHINO (pulling up trees and bushes regardless of size), hydraulic grab for logs LES (two bottom teeth, one top leg with a opening above 1 meter), hydraulic grab for logs MAMMOTH (four bottom teeth with a load on each over two tons, two upper independent tines with a opening above 1,5 m).

All equipment is mounted on any machinery.

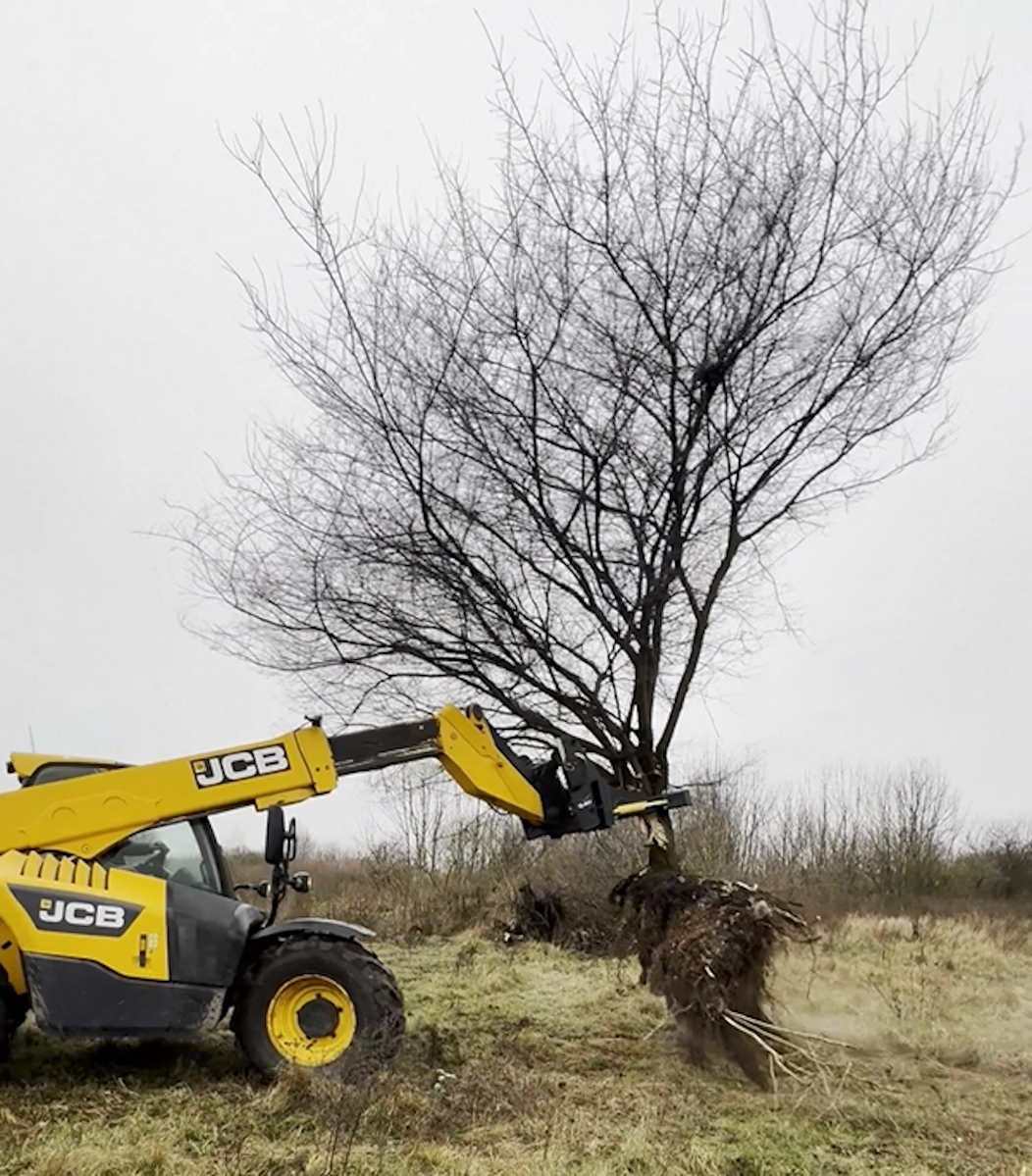

Crocodile is a mechanical device, which is installed on MANITOU, JCB, Dieci, Boschat, Merlo, Caterpillar, New Holland, Claas, Faresin and other telescopic loaders. This mechanism is used for clearing of forested fields. Crocodile allows you to uproot bushes and trees up to 25 cm in diameter depending on the species of tree and soil type.

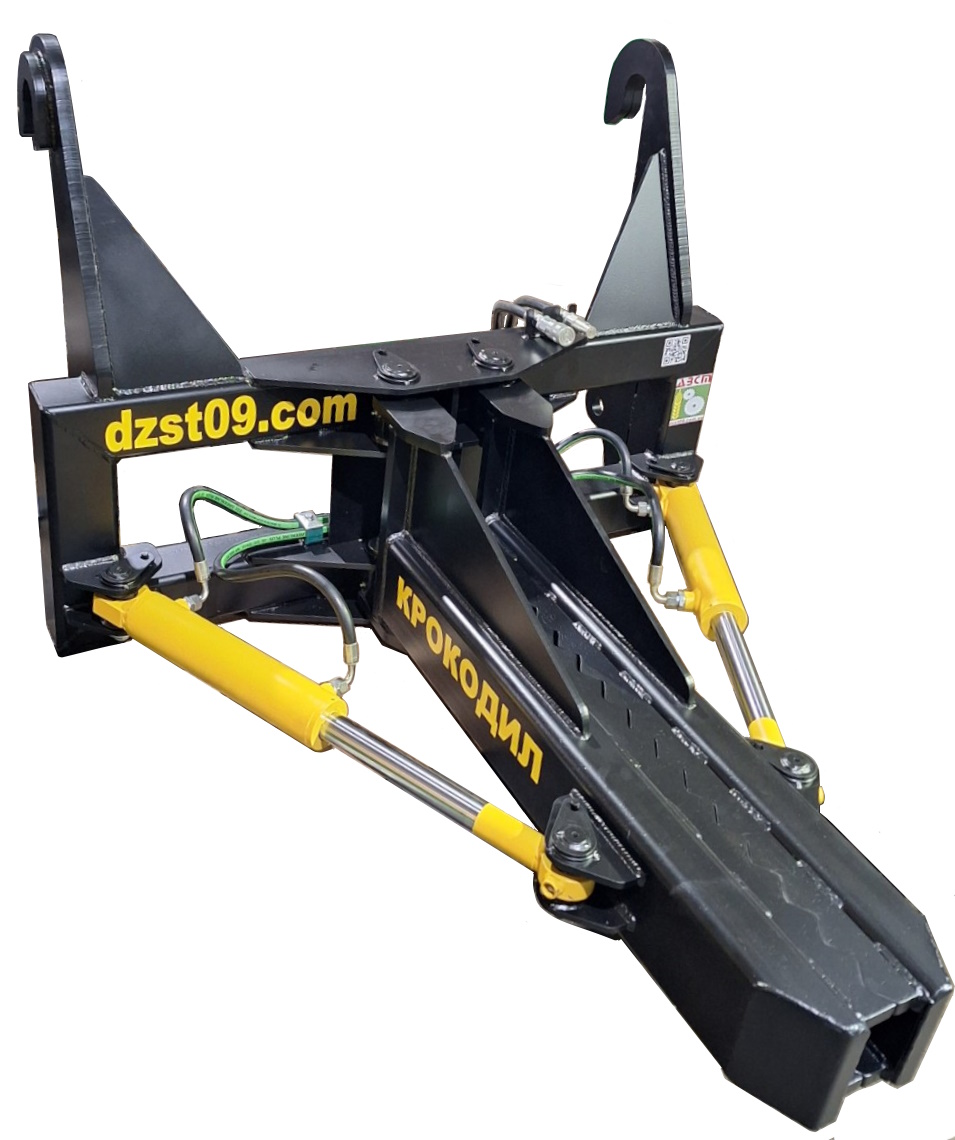

The uprooter of our design is equipped with two cylinders. The cylinder ears have spherical joints. All tines and bushes are made of steel 45, and the tines are heat-treated and ground. All pins are 40 mm in diameter. All bushes are equipped with grease nipples. The Crocodile is made of high-quality metal, which is resistant to shocks and changes in temperature.

For uniform operation of the tines, the puller is equipped with a hydraulic flow divider.

When using the device with certain models of loaders (Dieci, Merlo), additional hydraulic equipment for fixing the tines is installed.

Diameter of uprooted wood

• minimum 3 cm
• nominal 12 cm
• maximum  25 cm

Specifications

• Length/Width/Height — 1400/1200/470 mm

• Weight — 245 kg

• Maximum tines opening — 120 cm

• Rated pressure of hydraulic fluid — 160atm (16 MPa) +/-10%

• Service weight — 265+/-5 kg.
