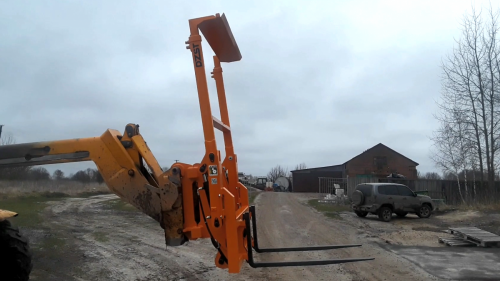

Forward tipping box rotator PC-2

Price: 5300 USD

Specifications

• Load capacity: 2000 kg.

• Tipping angle 110° + vehicle tilt angle.

• Width — 1800 mm.

• Depth — 2100 mm.

• Height — 1360 mm.

• Weight — 570 kg.

Warranty — 3 years. Delivery.

Forward tipping box rotator PC-2 is used for emptying the contents of a container weighing up to 2 000 kg. It allows you to work with fruits, vegetables, industrial waste and other materials.

Installation of this tipper is possible on any equipment of appropriate carrying capacity: frontal loaders, telescopic handlers, etc. One free hydraulic line is enough for installation. PC-2 is equipped with hydraulic hoses and quick couplings.

Requirements to loader hydraulic system: pressure 180 atm. It is possible to set it to a lower pressure, but it loses load capacity.

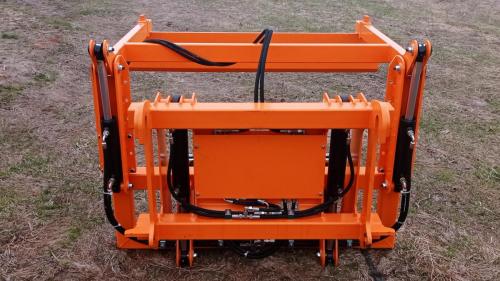

Four powerful hydraulic cylinders: one pair of cylinders performs clamping of the container, the second pair performs inversion. Stable construction. It is designed for intense use.

The container (box) can be stopped at any angle during operation.

Our benefits:

1. Fully automatic operation of the hydraulics from the two regular outputs of a single hydraulic line. Simple and reliable with no unnecessary controls.

2. Tipping angle 110° + vehicle tilt angle.

3. Suitable for 1500 — 2000 mm wide containers.

4. Easy, fast and safe adjustment for containers of different heights and depths.

5. Height adjustment from 800 — 1100 mm.

6. Depth adjustment 950 — 1250 mm.

7. Robust standard forks, size ISO 2A. Fork length 1000 — 1200 mm. Center distance between the forks is 800 mm.

8. No side stops allows containers which are next to each other in one row to be picked up.

9. The presser foot, when fully raised, allows two containers one on top of the other to be picked up.
