State compensation 25%

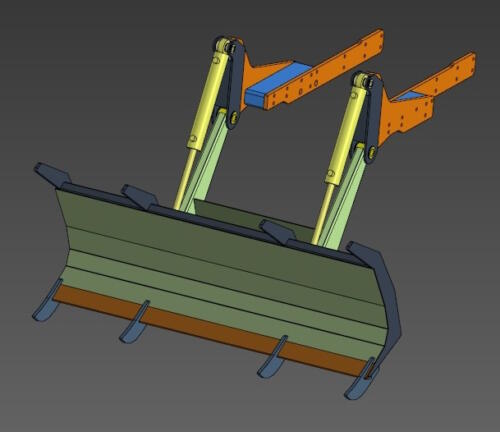

LT-1800 forest dump truck pusher



The price is UAH 65,000

Technical characteristics
Length/Width/Height – 2750/1800/910
Weight 390 kg.

The LT-1800 forest dump truck is installed on class 1.4 tractors. The mounting brackets are suitable for both tractors with a portal front axle and a beam axle.
The LT-1800 is intended for work in forestry for stacking roundwood, for forming bundles of lumber before their trawling, and for raking branches and underbrush.
Dump lift is carried out by 2 hydraulic cylinders HC63.32.320.605. Management from the regular tractor hydraulic system.

— the thickness of the blade blade metal is 10 mm;
— the brackets are screwed to the tractor with M16 bolts, they are attached to the front beam, spar and clutch housing;
— bushings and fingers made of steel 45 with heat treatment;
— bushings of increased width, for a larger spot of contact with the finger;
— lowering (edge ​​of the blade) — 150 mm below the level of the wheels;
— rise (blade edge) – 1150 mm;

The reliable attachment to the tractor and the shape of our dumper LT-1800 make it possible to work confidently in forest conditions.

The warranty is 24 months for the metal structure and 12 months for the hydraulics.
